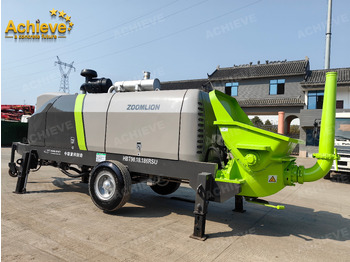

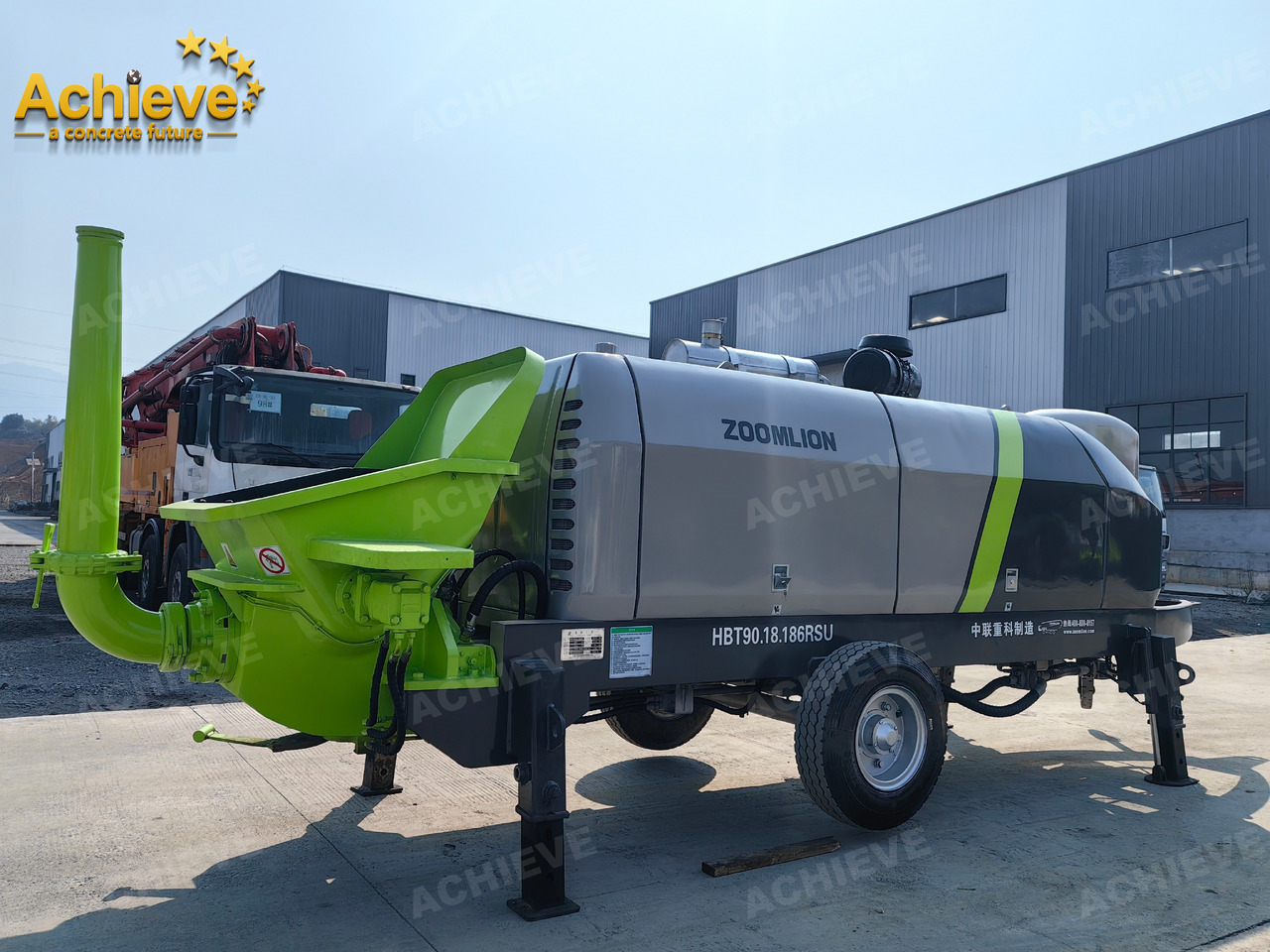

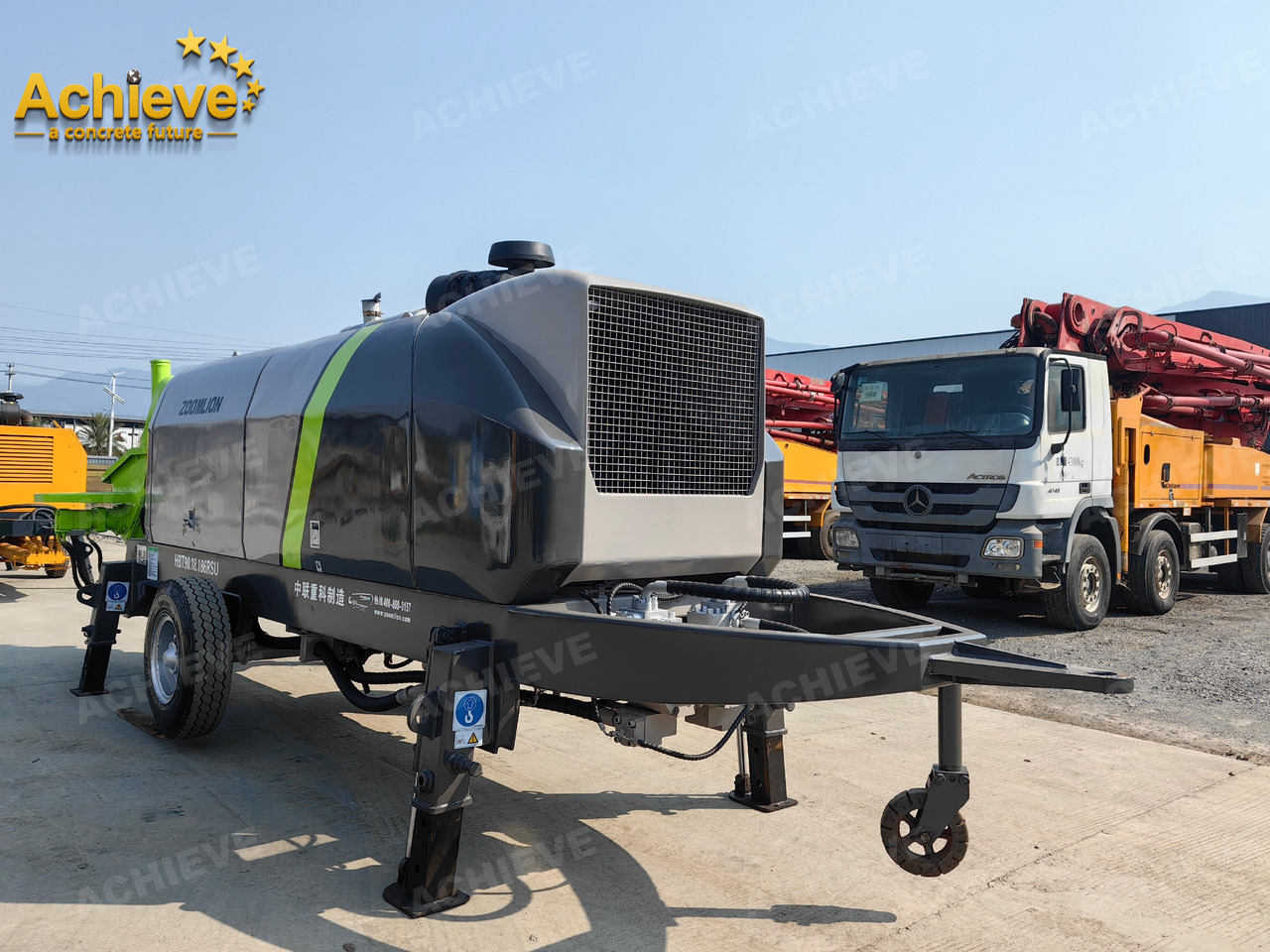

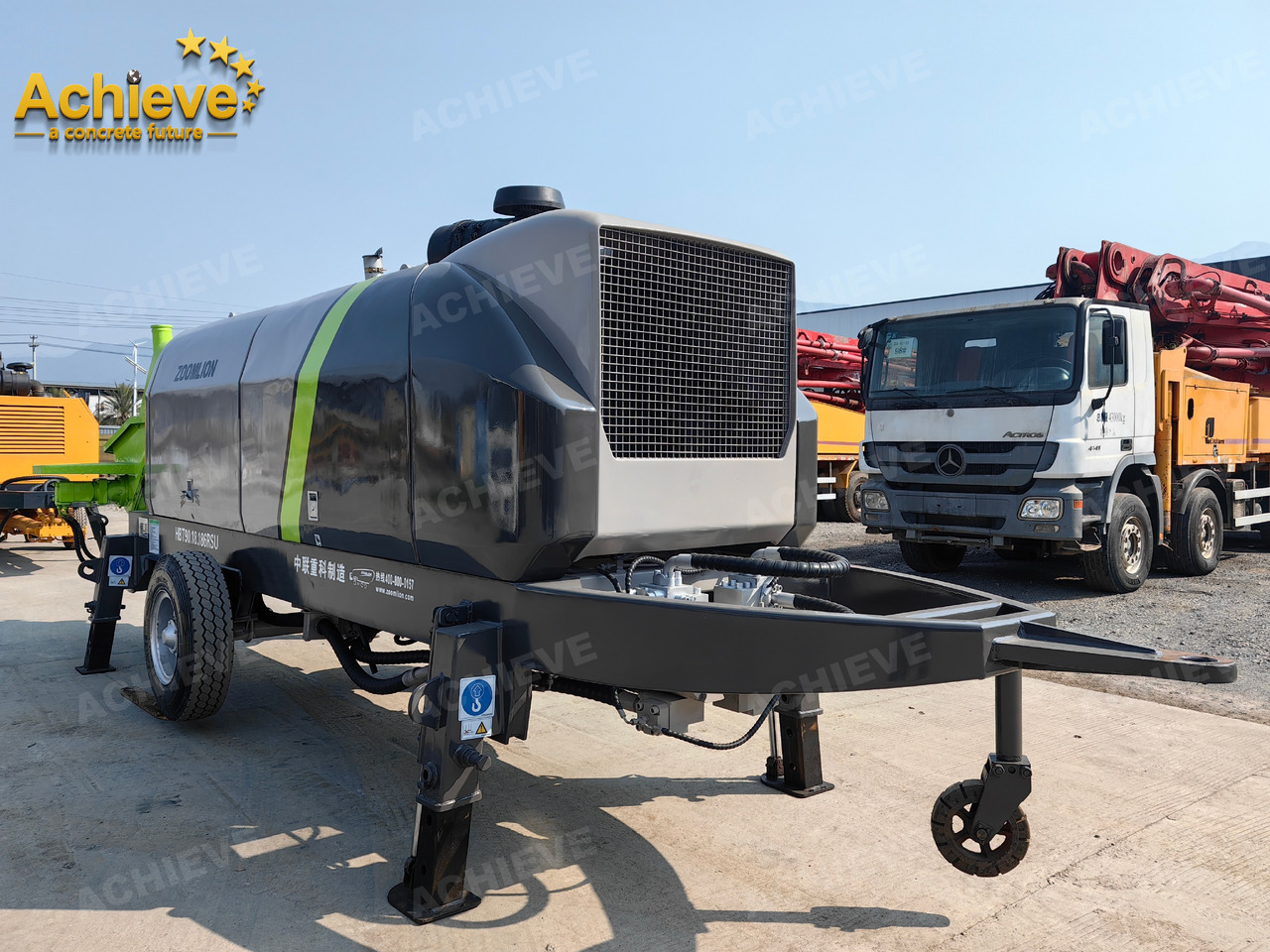

Zoomlion 2022 Zoomlion HBT 90.18.186RSU hydraulic Concrete Trailer Pump in China【ACHIEVE】TOP CONDITION!!! en crédit-bail
Publié: 6mois 7jour(s)
Publié: 6mois 7jour(s)
Publié: 6mois 7jour(s)
China, China, 410003, Changsha, Room 513, Block 4, Shangming Commercial Center, No. 28, Fuyuan Rd(M), Kaifu District【ACHIEVE】TOP CONDITION!!! 2022 Zoomlion HBT 90.18.186RSU hydraulic Concrete Trailer Pump in China

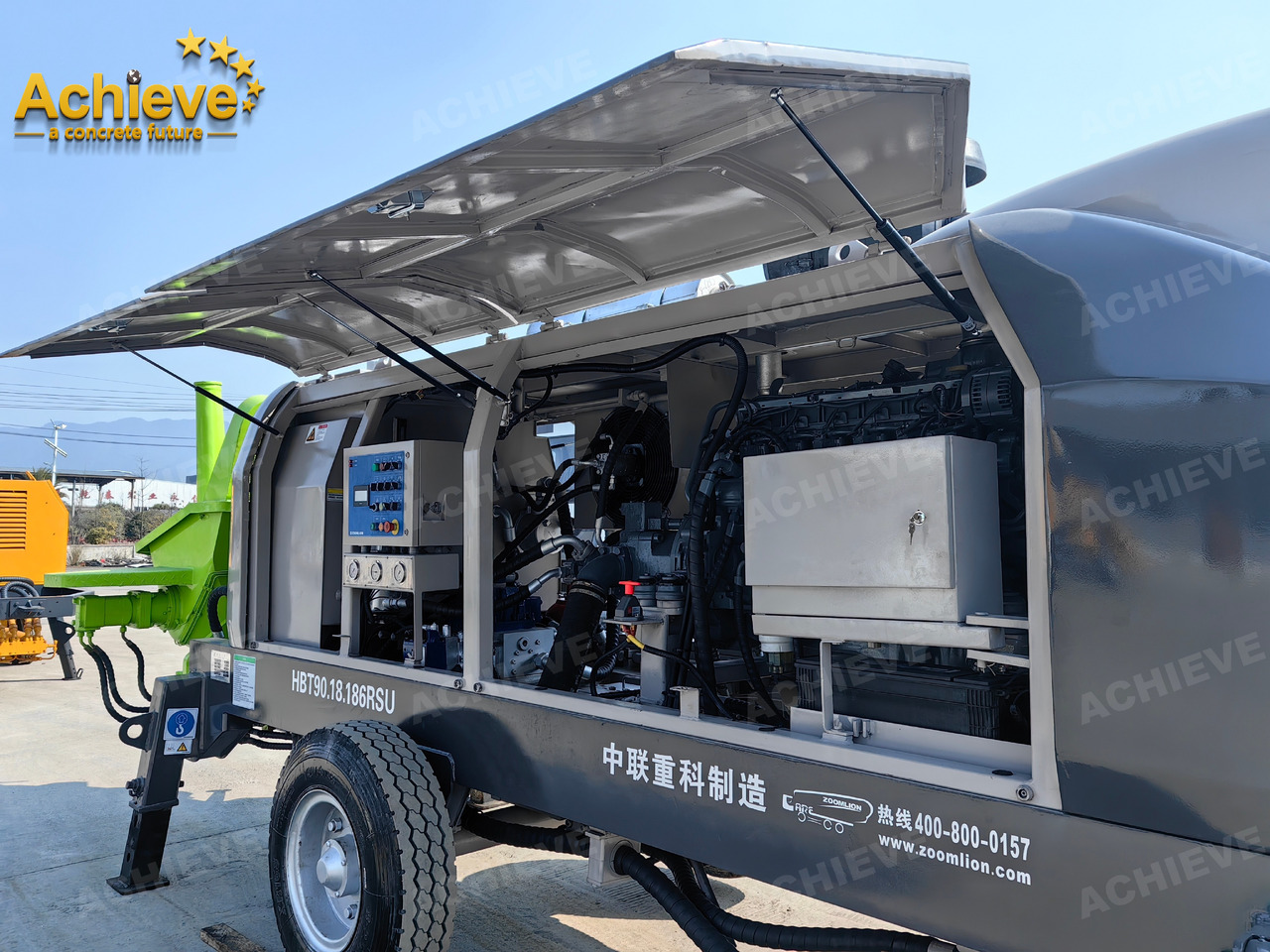

HBT90.18.186RSU is one of Zoomlion 4.0 products. The power system, system and pumping system are reasonably matched, effectively reducing diesel fuel consumption; high material absorption, the actual pumping efficiency reaches more than 80% of the theoretical value; the configuration is more optimized, the Deutz FAW engine provides strong power for the equipment, and a large number of imported hydraulic components and electrical components are used, which greatly improves the reliability of equipment use; the unique double-pump double-circuit open hydraulic system cooperates with each other and has a longer service life; the quick-change piston device with independent intellectual property rights makes piston replacement quick and convenient; the application of electric high and low pressure switching and hydraulic lifting legs simplifies the operation mode; the variable power energy-saving technology based on the extreme load adjustment pressure makes the equipment always work at the most economical working point, with the best energy-saving effect; the first to adopt industrial controllers with self-diagnosis and protection functions, the reliability has been greatly improved compared with ordinary PLC control.
Project
Unit
Value
Overall performance
Maximum theoretical conveying capacity
(Low pressure/High pressure)
m3/h
93/54
Concrete delivery pressure
(High pressure/Low pressure)
mPa
18/10
Pumping times
(Low pressure/High pressure)
min-1
27.3/15.8
Concrete cylinder borexTravel
mm
Φ200x 1800
Hopper volumexFeeding height
Lx mm
600x 1450
Overall dimensions:LongxWidexHigh
kg
7500 x 2200x 2700
Total mass
7800
Power system
Diesel engine model
kW
BF6M1013- -25T3R/1
Rated power
r/min
186
Rated engine speed
2100
Emission standards
Non-road country three
