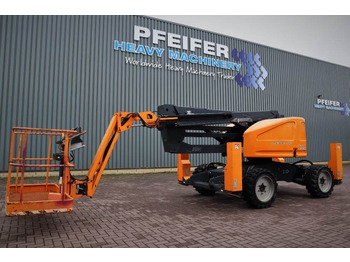

Nacelle articulée ATN ZEBRA 12 Valid inspection, *Guarantee! Diesel, 4x4

Horizontal reach: 8,50 m

This articulating boomlift has a valid inspection and can be sold with warranty. Inform about our conditions!

This lift is also available for rent!

Manufacturer: ATN

Typ: Zebra 12

Year: 2015

Fuel: Diesel

Serial number: Z1215064

Working hours: 675 h

Loading / lifting capacity: 230 kg

Drive / Steer: 4x4

Drive speed: 6 km/h

Tyre condition: 90%

Gearbox typ: Hydrostatic.

Engine manufacture / typ: Kubota / V1305-EU1

Working height: 12,20 m

Horizontal reach: 8,50 m

Up and over clearance: 4.42 m

Turntable rotation: 2x178 °

Platform rotation: 2x90 °

Turntable tailswing: 0

Jib rotatio: 133 °

Wheelbase: 2.00 m.

Ground clearance centre: 0.39 m

Turning radius - inside: 1.57 m .

Turning radius - outside: 4.00 m

Tyres: 33x12x20

Drive speed - stowed: 6 Km/h

Drive speed - raised: 1 Km/h

Gradeability - stowed: 40 %

Maximum tilt value: 4 °

Fuel tank capacity: 54 l

Hydraulic tank capacity: 60 l

Transportmaat L=4,60 H=2,72

CE (Declaration of Conformity).

All necessary documents and papers.

More detailed pictures / product movie on our website.

pfeifermachinery.com

Above specifications are subject to change without prior notice and subject to errors.
